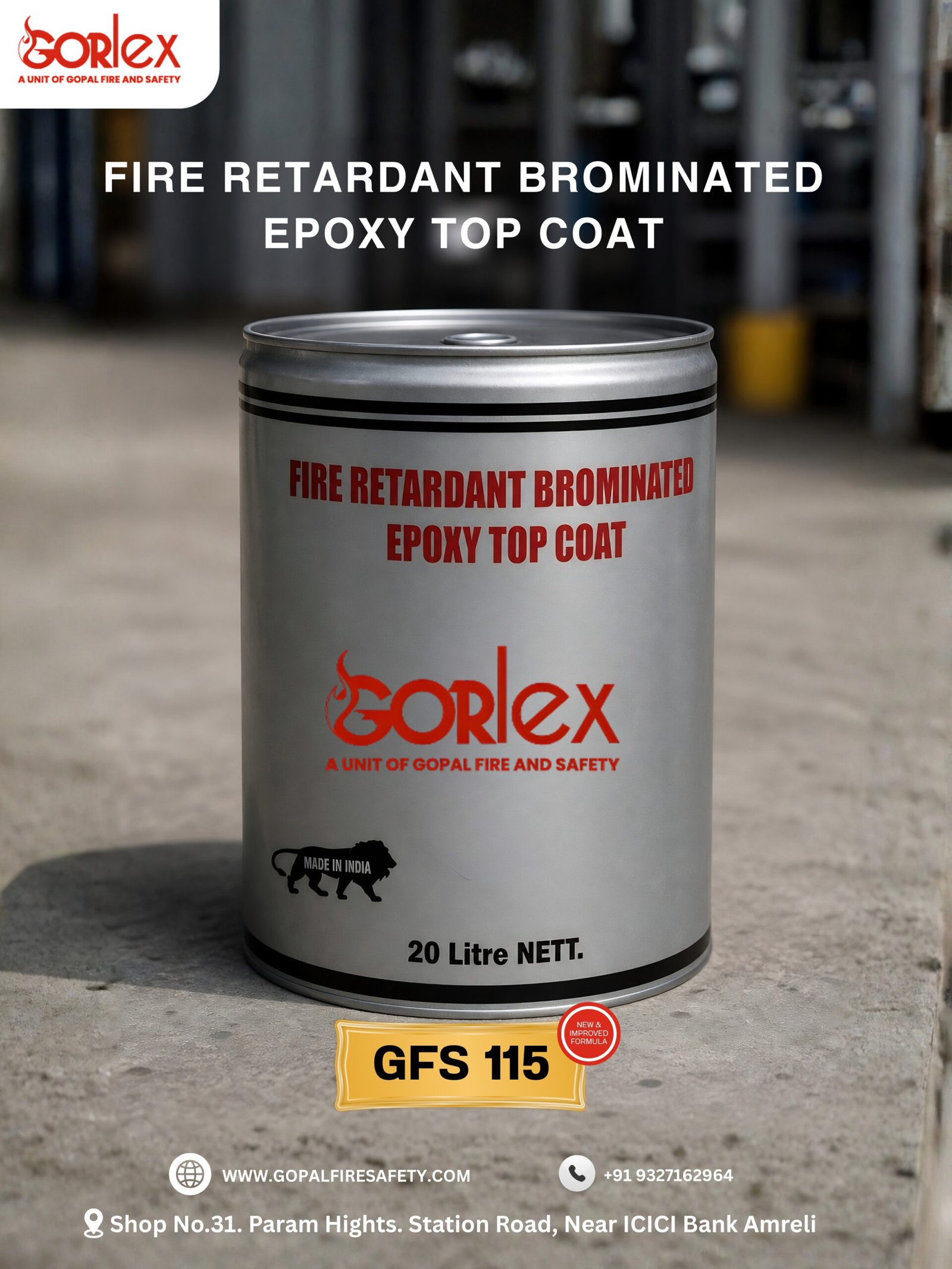

GFS015 GORLEX Fire Retardant Brominated Epoxy top Coat

1. Product Overview: Gorlex GFS 015

The Gorlex GFS 115 is a specialized industrial-grade top coat engineered to provide superior fire protection alongside the robust mechanical and chemical resistance typical of epoxy resins. Unlike standard epoxy coatings, which are naturally flammable due to their hydrocarbon-based molecular structure, GFS 115 incorporates brominated flame retardants (BFRs) directly into the polymer matrix.

This product is designed for high-stakes environments—such as petrochemical plants, marine offshore platforms, electronics manufacturing, and aerospace facilities—where preventing the spread of flame and maintaining structural integrity during a fire event is critical.

2. Chemical Composition & The Role of Bromination

To understand how GFS 115 works, we must look at the chemistry of Brominated Epoxy Resins (BERs).

The Epoxy Backbone

Epoxies are thermosetting polymers formed from the reaction of an epoxide “resin” and a polyamine “hardener.” While durable, standard epoxies have a high “Fuel Value.” When exposed to heat, they undergo thermal decomposition, releasing combustible gases.

The Mechanism of Bromine

The GFS 115 formula utilizes bromine as a gas-phase flame retardant.

• Radical Quenching: When the coating is exposed to fire, it releases bromine radicals ($Br\bullet$). These radicals react with the high-energy hydrogen ($H\bullet$) and hydroxyl ($OH\bullet$) radicals produced by the fire.

• Flame Inhibition: By scavenging these reactive radicals, the bromine effectively shuts down the exothermic chain reactions of the flame.

• Char Formation: Brominated compounds also promote the formation of a carbonaceous “char” layer on the surface, which acts as a thermal barrier, insulating the underlying substrate from the heat.

3. Technical Specifications (Estimated Data)

Based on the industrial standards for the GFS 115 series, the following technical parameters generally apply:

4. Key Performance Characteristics

A. Fire Retardancy (The Primary Function)

The GFS 115 is engineered to meet stringent fire safety standards (such as UL 94 V-0 or BS 476). It is classified as “Self-Extinguishing,” meaning once the external heat source is removed, the coating will stop burning.

B. Chemical and Corrosion Resistance

Because it is an epoxy-based system, it offers exceptional resistance to:

• Acids and Alkalis: Ideal for battery rooms or chemical processing zones.

• Saline Environments: Crucial for coastal and offshore applications (C5-M environments).

• Solvents: Resists degreasers, alcohols, and hydrocarbons.

C. Mechanical Durability

GFS 115 provides a hard, abrasion-resistant finish. It is designed to withstand heavy foot traffic, tool drops, and mechanical vibrations without cracking or peeling, ensuring the fire-retardant layer remains intact over years of service.

5. Application Methodology

For the GFS 115 to perform at its peak technical capacity, precise application protocols must be followed.

Surface Preparation

1. Substrate Cleansing: Surface must be free of oil, grease, and moisture.

2. Abrasive Blasting: For steel, a minimum of Sa 2.5 (Near White Metal) is recommended to ensure a mechanical bond.

3. Priming: GFS 115 is a top coat. It should ideally be applied over a compatible fire-retardant or anti-corrosive primer (like a Zinc-Rich Epoxy).

Application Equipment

• Airless Spray: Recommended for large industrial surfaces to achieve a uniform dry film thickness (DFT).

• Brush/Roller: Suitable for touch-ups or small areas, though multiple coats may be required to reach the specified thickness.

6. Safety and Environmental Considerations

While brominated epoxies are highly effective, they require professional handling:

• Ventilation: Use only in well-ventilated areas or with supplied-air respirators.

• PPE: Solvent-resistant gloves and eye protection are mandatory.

• Storage: Keep in a cool, dry place away from direct sunlight and ignition sources. The 20-liter nett containers should be stored upright.

7. About the Manufacturer: Gopal Fire and Safety

Gorlex is a premium brand under Gopal Fire and Safety, an Indian enterprise based in Amreli, Gujarat. They specialize in integrated fire protection solutions. The “Made in India” lion logo on the GFS 115 packaging signifies compliance with domestic manufacturing standards and a commitment to the “Atmanirbhar Bharat” initiative, providing localized high-tech chemical solutions that were previously imported.
